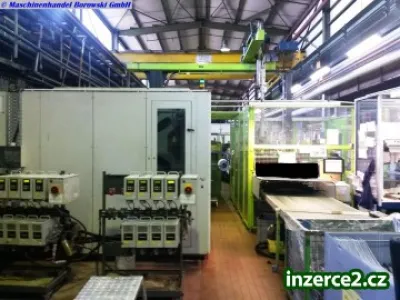

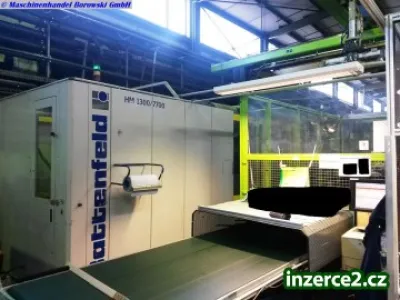

Pouzity vstrikolis Battenfeld HM 13000 2P - 7700

machine-no.: 502077 manufacturer: BATTENFELD Typ: HM 13000 2P - 7700 year of construction: 2005 operating hours: 26600 h type of drive: fully hydraulically clamping type: fully hydraulic method of construction: four tie bars clamping force: 13000 kN distance between tie bars h: 1600 mm distance between tie bars v: 1250 mm size of mould plates h: 2220 mm size of mould plates v: 1880 mm min. mould height: 650 mm max. mould height: 1400 mm opening stroke: 1680 mm ejector stroke: 300 mm ejector force: 117 kN centring device diameter of moving platen: 250 mm centring device diameter of fixed platen: screw diameter: 75 mm swept volume: 1878 ccm injection pressure: 2389 bar screw length: 22 mm screw geometry: 9 screw stroke: 500 mm screw rotation: 180 min screw torque: 7480 N plasticising rate: 92 g/s PS injection rate into the open: 644 g/s PS number of heating zones: 8 nozzle contact force: 226 kN nozzle stroke: 700 mm measures of machine lxbxh: 11m x 3.37m x 2.8m total weight: 68500KG • screen text german • CEE-socket 16A • cascade control uni -interface 6x • Schuko-socket 10A • machine incl. safety fencing • machine without material hopper • Anti vibration mounts • interface for handling • machine incl. Handling • core pulling hydraulically 4x Maschinenhandel Borowski GmbH, Germany [email protected]
