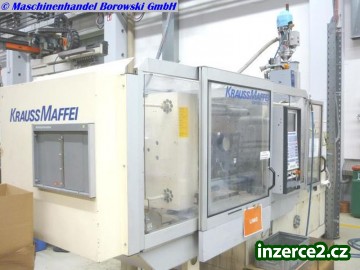

Pouzity vstrikolis Krauss Maffei KM 150-520 C2 MC4

Administrace: editovat | smazat
Typ: prodám
Vloženo: 16. 11. 2015 v 15:00
Kategorie: Stroje : Ostatní
Lokalita: Praha-město
Kontakt: 0049 2173 8950790, Maschinenhandel Borowski GmbH, Germany
Počet shlédnutí: 196

Cena: 0,00

machine-no.: 502081
manufacture: KRAUSS MAFFEI
Typ: KM 150-520 C2 MC 4
year of construction: 2001
operating hours: 44600 h
type of drive: fully hydraulically
clamping type: fully hydraulic
method of construction: four tie bars
clamping force: 1500 kN
distance between tie bars h: 500 mm
distance between tie bars v: 500 mm
size of mould plates h: 780 mm
size of mould plates v: 790 mm
min. mould height: 400 mm
opening stroke: 500 mm
ejector stroke: 150 mm
ejector force: 22 kN
centring device diameter of moving platen: 160 mm
centring device diameter of fixed platen: 160 mm
mould weight: 1650 kg

screw diameter: 45 mm
swept volume: 305 ccm
injection pressure: 1878 bar
screw length: 20 mm
screw geometry: 9
screw rotation: 356 min
plasticising rate: 36 g/s PS
injection rate into the open: 275 g/s PS
number of heating zones: 5
nozzle contact force: 50 kN
measures of machine lxbxh: 4.47m x 1.51m x 2.19m
total weight: 6400KG

• vibration mounts
• Schuko-socket 10A
• machine without material hopper
• machine incl. water flow regulator
• core pulling hydraulically 2x
• air valve fixed WAP
• screen text german
• CEE-socket 16A
